Surface top hammer drill rigs
Pantera™ DP1510i
- Hole diameter
- 89.0 - 152.0 mm (3.5 - 6.0 in.)
- Rock drill
- 35 - 40 kW
- Flushing air capacity
- 14 m³/min up to 10 bar

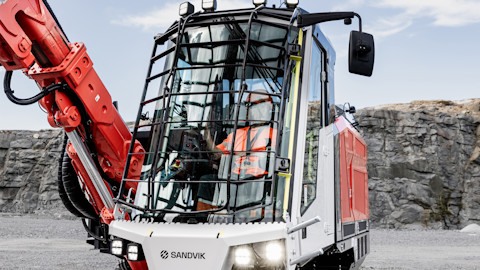

Pantera™ DP1510i is an intelligent, hydraulic, diesel-powered, self-propelled top hammer drill rig. Designed for large hole drilling, it is suited to production drilling in large quarries or open pit mines, construction work sites and wall control and development works.
Features
-
High productivity, low operating cost
At the core of Pantera™ DPi is the new RD1700 rock drill family, delivering optimal strikes and smooth drilling with its patented active stabilizer. With up to 40 kW of power and 15% better energy efficiency, it drives productivity. The iTorque drilling control system ensures hole accuracy. Paired with CT55 or CT67 rock tools and the RockPulse® system, drilling performance is maximized from bit to boom.
-
Built for uptime and unmatched efficiency
Pantera™ DPi is built for reliability and uptime — even in extreme conditions. Upgraded components like the CSL system, reinforced boom, and heavy-duty parts extend service life and maintenance intervals. My Sandvik’s digital tools for machine health and consumables tracking boost efficiency and OPEX control.
-
Smarter, safer, and more comfortable drilling
Pantera™ DPi has been upgraded to make daily work easier and safer. A quieter, low-vibration cabin boosts operator comfort, while touchscreen controls give easy access to all rig functions - from drilling parameter setups to troubleshooting instructions. Smart features like iClean take care of overburden drilling automatically and feed-to-tram automation enables smooth switching between drilling and tramming at the push of a button. Other optional intelligence features include one-hole automation, TIM3D and Driller's Notes, for maximized drilling performance.
Product specifications
Pantera™ DP1510i operating manual and spare parts
Operating manuals and spare parts can be found on the My Sandvik customer portal.
- Hole diameter
- 89.0 - 152.0 mm (3.5 - 6.0 in.)
- Rock drill
- 35 - 40 kW
- Flushing air capacity
- 14 m³/min up to 10 bar
- Drill rod/tube diameter
- 51, 60 or 87 mm (2, 2.375 or 3.5 in.)
- Hydraulic rock drill
- RD1735 (35 kW) / RD1740 (40 kW) as option
- Engine
- Caterpillar C9.3B, 280 kW (375 hp) / 1 800 rpm (Tier 3) Caterpillar C9.3B, 280 kW (375 hp) / 1 800 rpm (Stage V)
- Cabin
- Ergo cool
- Transport length
- 11.2 m (37.0 ft)
- Transport width
- 2.50 m (8.00 ft)
- Transport height
- 3.3 m (11.0 ft)
- Weight
- 23,000 kg (50,706 lb)
Learn more about Pantera™ DP1510i features
Connectivity options
Pantera™ DPi is built for the digital era, offering solutions for production monitoring and seamless integration into your mine or quarry operations. Open Drill Interface supports integration with third-party Fleet Management Systems (FMS) and drill navigation solutions. My Sandvik Insight & Productivity provides fleet-wide productivity monitoring and supports proactive maintenance planning. My Sandvik Onsite acts as a local productivity monitoring solution, connecting drills to the broader systems and processes of open-pit and large quarry operations.
Efficient service access
Pantera™ smart component layout allows for ease of service. Two doors on the equipment’s right side ensure easy maintenance from ground level.
Energy-efficient drill rig
Pantera™ DP1510i drill rig comes with a low-consuming Stage V engine for better fuel consumption and decreased CO2 emissions.
AutoMine® compatible
Pantera™ DP1510i is compatible with AutoMine® Surface Drilling remote control.
Rock drill heating & heavy-duty accumulator membrane for arctic conditions
Sandvik has designed a new system for heating the rock drill before starting it up. This feature dramatically increases the service life of the rock drill accumulator membranes.
