Diesel trucks
TH430L
- Dimensions (LxWxH)
- 10,500 x 3,000 x 2,000 mm
- Capacity
- 30,000 kg
- Box range
- 15 m³

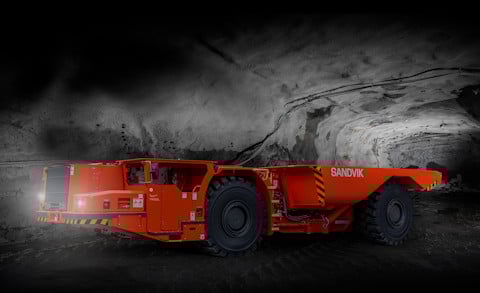

Sandvik TH430L is a low-profile underground mining truck designed for 4 x 2 meter applications, with a 30-tonne haulage capacity. It is suitable for ramp or level production haulage in medium-sized low-profile mines and mine development projects.
-
High maneuverability
This underground truck has the smallest envelope size in its class. This makes it easy to maneuver and navigate in restricted widths and heights. It will fit in an envelope of 4 meters x 2 meters.
-
Robust design
Its sturdy structure makes the truck suitable for ramp or level production haulage in medium-sized low-profile mines, as well as mine development projects in medium and large low-profile mines.
-
Smart control
Sandvik Intelligent Control System collects data and identifies problems before they occur, displaying critical warnings and alarms with text or lights. This makes it easy for operators to pre-empt problems and increases productivity.
Product specifications
- Dimensions (LxWxH)
- 10,500 x 3,000 x 2,000 mm
- Capacity
- 30,000 kg
- Box range
- 15 m³
- Maximum payload
- 30,000 kg
- Standard dump box
- 15 m³
- Dump box range
- 15 m³
- Dump box motion: discharging time
- 19 sec
- Dump box motion: dumping angle
- 61 degrees
- Total operating weight
- 28,300 kg
- Front axle operating weight
- 16,600 kg
- Rear axle operating weight
- 11,500 kg
- Total loaded weight
- 58,000 kg
- Front axle loaded weight
- 26,400 kg
- Rear axle loaded weight
- 31,700 kg
- Engine type
- Diesel engine - Volvo TAD1342VE (Tier 2)
- Torque
- 2005 Nm @ 1260 rpm
- Output
- 310 kW @ 2100 rpm
- Fuel tank capacity
- 610 l
*Dimensions are indicative only
Learn more about TH430L features
50/50 loaded weight distribution
TH430L features 50/50 loaded weight distribution between the front and rear axles when it is fully loaded. This ensures optimal stability and smoother vehicle control during transportation, minimizing the risk of tipping or overloading either axle.
