Diesel trucks

TH315

Dimensions (LxWxH)
7,800 x 2,300 x 2,400 mm
Capacity
15,000 kg
Box range
0 - 8 m³

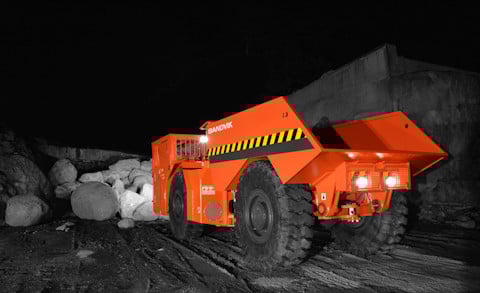

TH315 Diesel truck

Sandvik TH315 truck is a compact underground vehicle with a 15-tonne capacity built to offer the flexible mobility necessary in narrow-vein mining conditions. This underground truck carries high payloads for its weight and is quick and maneuverable on inclines.

Features

Product specifications

Dimensions (LxWxH)
7,800 x 2,300 x 2,400 mm
Capacity
15,000 kg
Box range
0 - 8 m³
Maximum payload
15,000 kg
Standard dump box
8 m³
Dump box range
0 - 8 m³
Dump box motion: discharging time
10 sec
Dump box motion: dumping angle
60 degrees
Total operating weight
18,400 kg
Front axle operating weight
13,400 kg
Rear axle operating weight
5,000 kg
Total loaded weight
33,400 kg
Front axle loaded weight
15,300 kg
Rear axle loaded weight
18,100 kg
Engine type
Diesel engine - Volvo TAD851VE (Tier 3)
Torque
1150 Nm @ 1500 rpm
Output
185 kW @ 2200 rpm
Fuel tank capacity
240 l

*Dimensions are indicative only

TH315 Diesel truck

Learn more about TH315 features

Safer servicing

Ground-level daily maintenance points enable safer servicing.

Easy to maintain

This underground truck is designed to be reliable and easy to maintain. The color-coded three-point-of-contact access system with fold-out ladders and handles offers easy access to the maintenance areas on the truck’s top.
