Electric loaders
Toro™ LH514iE
- Dimensions (L x W x H)
- 11,000 x 2600 x 2500 mm
- Capacity
- 14,000 kg
- Bucket range
- 4.6 - 7.0 m³

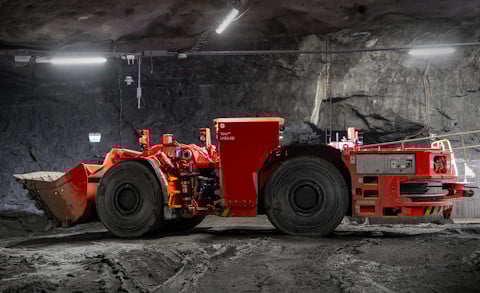

Toro™ LH514iE is a cable-electric loader for underground hard rock loading and hauling applications with a tramming capacity of 14 metric tons.
Toro™ LH514iE video
Features
-
AutoMine® capable
Designed with AutoMine® integrated capabilities which gives customers the flexibility to upgrade from manual to autonomous operations at any time in the equipment’s lifespan.
-
Skip the pump
Cable-electric means no need for thousands of gallons of fuel and no need for battery swapping and charging.
-
i means intelligence
Toro™ LH514iE loader is equipped with Sandvik Intelligent Control system offers a user-friendly interface with vehicle parameters for rapid fault-finding all on one large screen for the operator.
Product specifications
- Dimensions (L x W x H)
- 11,000 x 2600 x 2500 mm
- Capacity
- 14,000 kg
- Bucket range
- 4.6 - 7.0 m³
- Maximum tramming capacity
- 14,000 kg
- Break out force, lift
- 28,100 kg
- Break out force, tilt
- 24,600 kg
- Standard bucket size
- 5 m³
- Bucket motion times
- Raising time: 8.4 sec, lowering time: 4.0 sec, dumping time: 1.8 sec
- Operating weight
- 38,500.000 kg
- Loaded weight
- 52,500 kg
- Speed 1st gear
- 4.0 km/h
- Speed 2nd gear
- 7.1 km/h
- Speed 3rd gear
- 12.1 km/h
- Speed 4th gear
- 20.5 km/h
Learn more about Toro™ LH514iE features
User-friendly and intelligent control system.
Toro™ LH514iE loader comes with Sandvik Intelligent Control System and My Sandvik Digital Services Knowledge Box™, onboard hardware for easy troubleshooting and data monitoring. Optional features include Integrated Weighing System (IWS) for production monitoring and the OptiMine® solution.
Electrification
More productive, powerful and better for workers' health
"Every mine has a capital purchase or a maintenance replacement coming up in the next few years, and they would be missing out if they decided not to investigate or pursue battery-electric technology."
