Diesel loaders

Toro™ LH517i

Dimensions (L x W x H)
11500 x 3100 x 2800 mm
Capacity
17,000 kg
Bucket range
7.0 - 9.1 m³

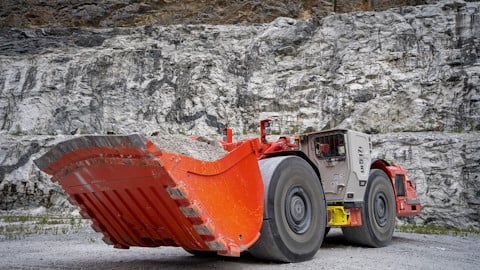

Toro™ LH517i underground loader in mine

Toro™ LH517i loader is a 17-tonne underground vehicle featuring superior hydraulic power for fast bucket filling. The drivetrain power enables high-speed tramming and increased productivity. Long-life components, specifically developed for the rough underground environment, contribute to low cost per tonne.

Features

Product specifications

Dimensions (L x W x H)
11500 x 3100 x 2800 mm
Capacity
17,000 kg
Bucket range
7.0 - 9.1 m³
Maximum tramming capacity
17,200 kg
Break out force, lift
35,000 kg
Break out force, tilt
29,450 kg
Standard bucket size
7 m³
Bucket motion times
Raising time: 8.3 sec, lowering time: 4.3 sec, dumping time: 2.0 sec
Operating weight
48,400.000 kg
Loaded weight
65,600 kg
Speed 1st gear
5.4 km/h (Stage V and Tier 4F engine option)
Speed 2nd gear
9.6 km/h (Stage V and Tier 4F engine option)
Speed 3rd gear
16.8 km/h (Stage V and Tier 4F engine option)
Speed 4th gear
29.7 km/h (Stage V and Tier 4F engine option)

*Unit weight is dependent on the selected options

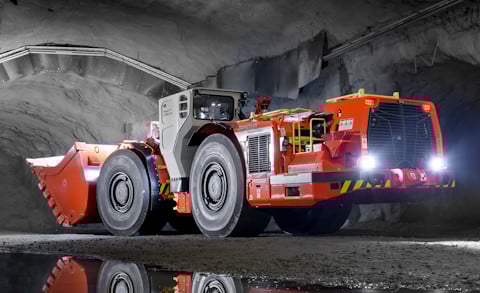

Toro™ LH517i underground loader

Additional features

Learn more about LH517i features

Maintenance friendly

Smart placement of key service areas and service access for safe and easy maintenance. The loader's boom locking mechanism allows one-handed operation while maintaining 3-point contact. All hydraulic test points are accessible at ground level.

Low ownership cost

Extended component lifetimes, robust structure and high carrying capacity ensure the loader runs at a low cost per tonne.

Intelligent digital solutions

LH517i loader includes smart features such as Sandvik Intelligent Control System, My Sandvik Digital Services Knowledge Box™, and AutoMine® readiness. Optional Integrated Weighing System (IWS) measures payload and bucket count during shifts.
