Diesel loaders

Toro™ LH203

Dimensions (L x W x H)
7100 x 1500 x 1900 mm
Capacity
3,500 kg
Bucket range
1.5 - 1.8 m³

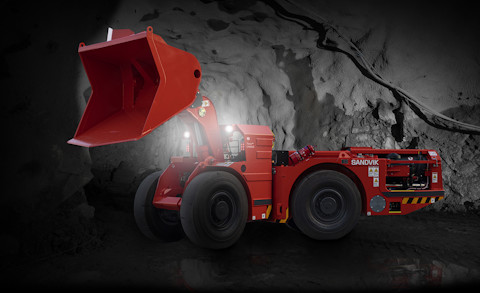

Toro™ LH203 loader in mine

Toro™ LH203 loader from Sandvik is a compact underground loader designed for narrow vein mining. With a robust build, it offers strong and productive performance in narrow and limited space operations offering full 3.5 -tonne payload capability.

Product specifications

Dimensions (L x W x H)
7100 x 1500 x 1900 mm
Capacity
3,500 kg
Bucket range
1.5 - 1.8 m³
Maximum tramming capacity
3,500 kg
Break out force, lift
6,220 kg
Break out force, tilt
5,610 kg
Standard bucket size
2 m³
Bucket motion times
Raising time: 5.5 sec, lowering time: 2.9 sec, dumping time: 3.0 sec
Operating weight
9,300.000 kg
Loaded weight
12,800 kg
Speed 1st gear
5.5 km/h
Speed 2nd gear
10.3 km/h
Speed 3rd gear
25.5 km/h
Speed 4th gear
n/a

*Depending on the bucket size and type, the actual payload may deviate from the nominal payload

Toro™ LH203 loader in mine

Learn more about LH203 features

Safer servicing

For safety and easy maintenance, daily checks for LH203 can be performed from ground level. Energy isolation is possible with a lockable main switch and optional onboard wheel chocks ensure stability. Three-point high-contrast handles and anti-slip steps further facilitate maintenance access.
