Diesel loaders
Toro™ LH202
- Dimensions (L x W x H)
- 6200 x 1500 x 2100 mm
- Capacity
- 3,000 kg
- Bucket range
- 1.3 - 1.5 m³

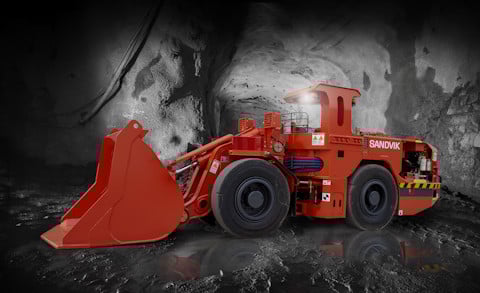

![Toro™ LH202 underground loader in mine](/siteassets/images/loaders/diesel-loaders/lh202-001.jpg?width=480&height=293&rmode=crop&rsampler=bicubic&compand=true&quality=90&v=1711360718&hmac=d9a98eeea39d8b04b4a85f65675d02a6ccb56ffa783b99bfe85a3e59d22afec6)
Toro™ LH202 loader is designed for narrow-vein mining, prioritizing productivity in underground conditions. It has a compact structure, a 3,000 kg payload capacity and optimization for tunnel widths of 2 - 2.5 meters. In addition to mining, the loader is well suited for small-scale civil infrastructure projects and construction sites.
-
Reduced width and turning radius
Compared to other machines in the same size class, Toro™ LH202 loader is engineered to optimize machine width, length and turning radius, enabling operation in narrow tunnels and lowering costs.
-
Improved powertrain results
The advanced hydrostatic powertrain technology has two speed areas. With no transmission, there is less stress on the drivetrain and no risk of gear misuse. This reduces machine failures and unplanned maintenance costs.
-
Operator safety
This loader has a ROPS and FOPS-certified operator's compartment in the rear frame for improved operator safety. Standard canopy and optional low-profile canopy are available. All required daily checks can be done from the ground level and Stage V engine option improves operator environment by lowering the emision levels in exhaust gases.
Product specifications
- Dimensions (L x W x H)
- 6200 x 1500 x 2100 mm
- Capacity
- 3,000 kg
- Bucket range
- 1.3 - 1.5 m³
- Maximum tramming capacity
- 3,000 kg
- Break out force, lift
- 5,810 kg
- Break out force, tilt
- 6,425 kg
- Standard bucket size
- 1 m³
- Bucket motion times
- Raising time: 4.8 sec, lowering time: 3.3 sec, dumping time: 5.5 sec
- Operating weight
- 8,800.000 kg
- Loaded weight
- 11,800 kg
- Speed 1st gear
- 10.0
- Speed 2nd gear
- Speed 3rd gear
- Speed 4th gear
*Depending on the bucket size and type, the actual payload may deviate from the nominal payload
Learn more about LH202 features
Higher payloads
With a 3,000 kg payload capacity, the loader offers high productivity; LH202 has the highest payload-to-own-weight ratio in its class.
Safety for servicing
Daily checks are easily performed at ground level. Standard onboard wheel chocks ensure machine stability during maintenance, with three-point handles and anti-slip steps also providing additional security.
