Toro™ LH208L

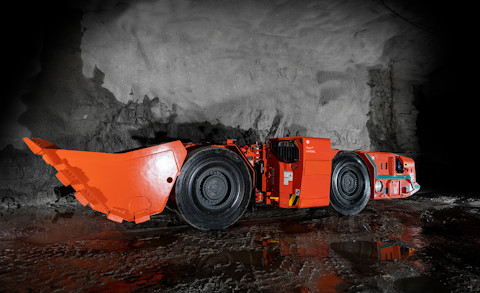

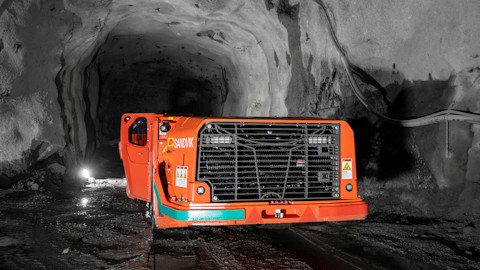

Toro™ LH208L Underground loader offers a high payload capacity while operating efficiently in extremely limited height mines. This workhorse loader offers high productivity in hard rock conditions thanks to a variety of digital options and proven engine technology.

Safer. Stronger. Smarter

Toro™ LH208L Underground loader is specifically designed for very limited headings, while maintaining high productivity. With a height of 1.6 meters and a payload capacity of 7.7 tonnes, it has a reinforced frame to resist ground and roof impacts and the welded steel box structures in the frame to handle any hard rock mining environments.

The tough frame is backed by a standard 140 kW Stage II (Tier 2) engine from Deutz, with catalytic purifier and muffler, with an optional diesel particulate filter (DPF) with a sintered metal field serviceable core, which can easily be cleaned with steam or a high-pressure water cleaner. This engine can also use paraffinic biodiesel fuel meeting the requirements of EN 15940, which reduces emissions of CO, CO2, HC, NOx and diesel particulates. Advanced powertrain technology includes a proven power shift transmission with modulation and electrical gear shift control. The transmission and hydraulics are equipped with an efficient horizontal cooler.

Toro™ LH208L loader control system supports the operator and maintenance personnel in monitoring the loader health. It continuously monitors the equipment’s condition and warns the operator before failures occur, preventing severe damage and downtime. The optional Integrated Weighing System (IWS) by Sandvik accurately measures payload when lifting the boom as well as the number of buckets filled during a shift and records the results to My Sandvik Digital Services Knowledge BoxTM. Other options include Traction Control, which reduces tire wear.

Technical data
Dimension (L-W-H) 8.6 x 2.8 x 1.6 m
Capacity 7.7 metric ton
Weight (operating) 20,830 kg
Hydraulic breakout force - lift 12,100 kg
Hydraulic breakout force - tilt 12,400 kg
Engine power 140 kW
Speed 8.0 km/h
