Electric loaders

Sandvik LH409E

Dimensions (LxWxH): 10,500 x 2,500 x 2,400 mm
Capacity: 9,600 kg
Bucket range: 3.8 - 4.6 m³

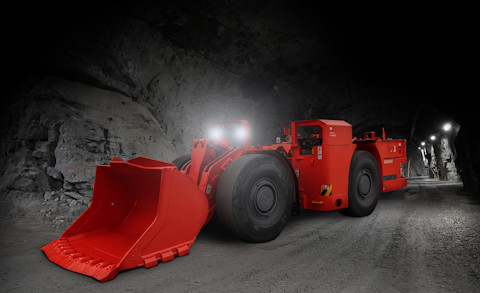

Sandvik LH409E is a high-productivity electric underground loader with a tramming capacity of 9,600 kg. Zero emissions and low noise contribute to a cleaner and quieter working environment. Reliability, fast bucket filling and rapid cycle times deliver high capacity at a low cost per tonne.

Features

Zero-emission electric motor

LH409E electric motor creates zero diesel emissions, significantly reducing noise levels, vibrations and heat. This contributes to an improved working environment in underground operations.
Easy servicing

Easy, ground-level access for service and maintenance optimizes uptime.
High power-to-weight ratio

A high power-to-weight ratio combined with high breakout forces, high tramming speeds and unique bucket filling enables the operator to move more material faster.

Product specifications

Download LH409E specification sheet (PDF)

Dimensions (LxWxH): 10,500 x 2,500 x 2,400 mm
Capacity: 9,600 kg
Bucket range: 3.8 - 4.6 m³
Maximum tramming capacity: 9,600 kg
Break out force, lift: 20,400 kg
Break out force, tilt: 19,300 kg
Standard bucket size: 4 m³
Bucket motion times: Raising time: 8.0 sec, lowering time: 4.5 sec, dumping time: 3.0 sec
Operating weight: 24,500 kg
Loaded weight: 34,100 kg
Speed 1st gear: 3.5 km/h
Speed 2nd gear: 6.3 km/h
Speed 3rd gear: 11.8 km/h
Speed 4th gear: n/a

*Dimensions are indicative only
