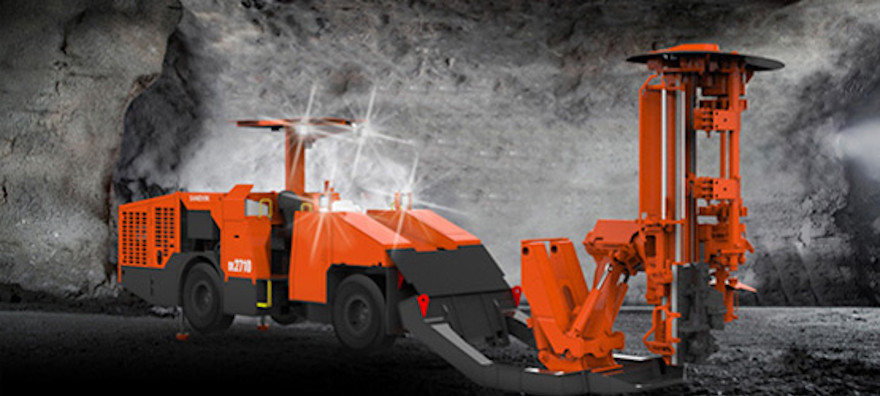

DL2710 Longhole drill rig

This top hammer longhole drill is fully mechanized and compact with an electro-hydraulic top hammer designed for underground mining in 3.2 x 3.2 meter or larger production drifts.

Need to know more?

Request a quote Find an office

Downloads

dl2710-specification-sheet-english.pdf (PDF document, 2.9 MB)

It is capable of drilling vertical and inclined fans and single or parallel diameter 64 – 89 mm longholes up to 38 meters in length, using T38, T45 and T51 MF-rods or Ø65 mm tube rods.

Advantages:

  • Robust design and proven components ensure low operating costs
  • Equipped with the HL820ST hydraulic rock drill for large drilling capacity and high drilling performance
  • Longhole drilling module with carousel equipped with a strong anchoring system and feed instrumentation for precise positioning and excellent hole accuracy
  • The carrier is designed for good visibility, mobility and stability, ensuring fast and safe tramming in narrow mine drifts.
  • Intelligent drilling control system for high productivity
  • This version is more compact and allows drill module to be closer to the face.
