Surface top hammer drill rigs
Pantera™ DP1100i
- Hole diameter
- 89.0 - 140.0 mm (3.5 - 5.5 in.)
- Rock drill
- 25 kW
- Flushing air capacity
- 11 m³/min up to 10 bar
Pantera™ DP1100i is a hydraulic, diesel-powered, self-propelled top hammer drill rig ideal for production in large quarries, open pit mines and construction sites. It provides stability and produces a range of drilling information, including drill condition and work performed.
Features
-
High productivity, low operating cost
Pantera™ DP1100i top hammer drill rig boosts productivity across various applications in surface top hammer drilling. Based on the well-known DPi series characteristics, this rig provides power, lower fuel consumption, more uptime hours and a smoother flow of operation.
-
iTorque drilling control system
iTorque drilling control system together with efficient Sandvik stabilizer rock drills delivers high productivity and hole accuracy. With the optional high-frequency rock drill RD1635CF, you can further ensure optimal drilling performance in changing rock conditions.
-
Advanced features
The intelligent rig offers advanced features, including drilling parameter setups, step-by-step troubleshooting instructions and the collection of a range of drilling information. Active engine control delivers maximum power and reduces fuel consumption when maximum power is unnecessary.
Product specifications
- Hole diameter
- 89.0 - 140.0 mm (3.5 - 5.5 in.)
- Rock drill
- 25 kW
- Flushing air capacity
- 11 m³/min up to 10 bar
- Drill rod/tube diameter
- 51 or 60 mm (2 or 2.36 in.)
- Hydraulic rock drill
- HL1060T, 25 kW
- Engine
- Caterpillar C9, 224 kW (300 hp) / 1 800 rpm (Tier 3) Caterpillar C9.3, 224 kW (300 hp) / 1 800 rpm (Tier 4F) Caterpillar C9.3B, 250 kW (335hp) / 1 800 rpm (Stage V)
- Cabin
- Ergo cool
- Transport length
- 11.5 m (37.7 ft)
- Transport width
- 2.50 m (8.20 ft)
- Transport height
- 3.2 m (10.5 ft)
- Weight
- 22,900 kg (50,490 lb)
Learn more about Pantera™ DP1100i features
Compressor control for fuel saving
The hydraulically controlled compressor intake valve provides efficient and accurate compressor control while eliminating the possibility of freezing in cold conditions.
Efficient service access
Pantera™ smart component layout allows for ease of service. Two gullwing doors on the equipment’s right side ensure easy maintenance from ground level.
Energy-efficient drill rig
This drill rig comes with a low-consumption Stage V / Tier 4 Final engine for better fuel consumption and decreased CO2 emissions.

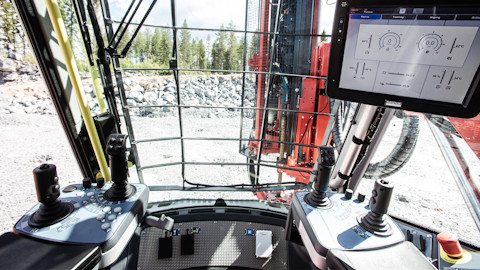

Certified safety cabin
The ROPS/FOPS-certified safety cabin provides excellent visibility while troubleshooting instructions make the equipment safe, operator-friendly and highly productive.
Circulating Shank Lubrication system
In the optional RD1635CF rock drill, the Circulating Shank Lubrication (CSL) system circulates shank lubrication oil through filters, reduces oil consumption by up to 70% and increases the lifetime of coupling sleeves.
AutoMine® compatible
Pantera™ DP1100i is compatible with AutoMine® Surface Drilling remote control.
