Sandvik evolves Leopard™ DI650i to support fully autonomous blasthole drilling

Sandvik Mining and Rock Solutions is evolving its Leopard™ DI650i down-the-hole (DTH) drill rig to support fully autonomous operation. The new iDrill automation platform expands the existing on-board automated drilling cycle and matches seamlessly with AutoMine® Surface Drilling to enable fully autonomous Leopard™ DI650i fleet operation from a control room.

Sandvik Mining and Rock Solutions is continuously improving its automation solutions to meet the growing needs for remote operation to improve safety and productivity.

“The latest development is a major step on Sandvik’s DTH drill rig automation journey,” says Jari Läntinen, Product Manager, Surface Drilling. “This means shifting from individual automated tasks and sequences towards a genuine ecosystem of automation platforms and operating with a connected fleet of automated mining equipment. This will also change the role of one operator handling a single machine into a specialist controlling multiple drill rigs remotely and utilizing their expertise to optimize drilling process productivity.”

The new iDrill automation for Leopard™ DI650i complements existing automated drilling functionalities with several new features such as drilling stabilization, automated collaring, automated cleaning and detaching from hole. The result is an optimized iDrill drilling cycle where the operator only needs to monitor the process.

Optimized cycle ensures consistent, quality holes

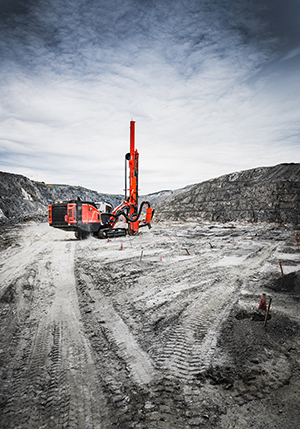

leopard-DI650i-LR.jpgThe iDrill drilling cycle of Leopard™ DI650i is engineered to ensure consistent high-quality drilled holes. It supports the fleet operator by minimizing common drilling errors, such as hole inclination, depth and positioning errors. The intelligent sequences of the iDrill drilling cycle handle and optimally control the DTH drilling tools for best possible service life without compromising drilling performance.

The iDrill drilling cycle starts with automated positioning, where the TIM3D drill navigation system guides the rig to the correct spot according to the drill plan. Feed beam and boom are automatically positioned to the correct drilling angle. The drill rig is automatically stabilized and the feed beam is accurately aligned to match the drill plan to ensure high-quality holes.

The existing cycle has been upgraded with new features such as antijamming pullback monitoring, intelligent collaring sequence including suction head automatics and centralizer automatics to match the hammer and pipe size for optimal support while collaring. In full-power drilling, the iFlow control system automatically adjusts the air pressure and volume levels and iTorque drilling control system monitors the rotation torque and automatically optimizes the feed force to match the rock conditions.

The pipe handling system adds and removes pipes automatically. An intelligent hole finishing sequence eliminates any harmful tensile stresses due to inaccuracies and prevents dirt from entering into the DTH hammer. Finally, detaching from hole sequence makes the drill rig ready to move safely to the next hole.

The iDrill drilling cycle allows manual intervention and can be activated or deactivated at any stage of the cycle. In addition, the operator can add optional wait stages between automated sequences, if additional check-ups are needed for safety reasons or challenging drilling conditions, for example. After intervention, the cycle will commence automatically until the desired hole depth is reached and the hole sequence is finished.

Fully autonomous operation

AutoMine® Surface Drilling enables line-of-sight or control room operation of as many as three Leopard™ DI650i drill rigs. Upcoming AutoMine® Surface Drilling release will provide hole-to-hole tramming for automatic machine relocation from a finished hole to the next one according to the drill plan, based on GPS navigation and path planning – turning Leopard™ DI650i into a fully autonomous drill rig.

Tampere, Finland, 15 June 2021
