New Leopard™ DI650i: more intelligent DTH surface drilling

Sandvik Mining and Rock Technology is demonstrating its expanded high-pressure DTH drill rig offering for Tier 4F and Stage V compliant countries by presenting the new Leopard DI650i at CONEXPO-CON/AGG 2020. The new Leopard DI650i DTH rig is designed for large hole sizes, and by balancing proven engineering solutions and innovative new components, it offers excellent fuel efficiency, improved safety and higher productivity in challenging rock conditions.

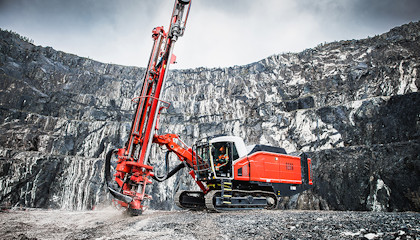

Leopard DI650i down-the-hole (DTH) drill rig is designed for demanding high-capacity production drilling applications in surface mining, as well as large-scale quarry applications. In addition to a powerful engine and compressor, Leopard DI650i incorporates a highly ergonomic iCAB cabin, excellent serviceability, mobility and fuel economy, along with scalable automation packages to offer excellent overall productivity.

In addition to the solid, long-term track record of engine and compressor design, Leopard DI650i comes with a range of new or redesigned components to boost its productivity. The standard rotary head option, HTRH6, has performed successfully on existing Sandvik DTH rigs, whereas the new heavy-duty option, MRH6, is a good fit with Sandvik’s powerful new RH560-series DTH hammers and is well-matched to the demands of the upper range of the capacity area.

Pipe sizes range from 3.5 to 5 inches (89 to 140 mm), depending on the size of the hammer. The maximum hole depth is 175 ft 10 inches (53.6 m) when utilizing the carousel option with pipe sizes from 3.5 to 4.5 inches (89 to 114 mm). The capacity range of 540 hp (403 kW) Tier 3 / Tier 4F / Stage V CAT C15 diesel engine and reliable compressor is adequate for high-pressure drilling with 4 to 6.5 inch DTH hammer sizes.

Thanks to excellent visibility of the drilling area and a single integrated touch screen for all monitoring, diagnostics and mining automation displays, Leopard DI650i’s silent, ergonomic iCAB cabin provides the rig operator with a safer, more productive working environment. The maintenance crew can carry out all daily servicing tasks at ground level on both sides of the machine. The advanced serviceability and reliability features can increase Leopard DI650i’s availability by up to 20% compared with conventional DTH rigs at a similar technology level.

Intelligent control technology applied to both the compressor and the hydraulic system’s cooler fan can reduce fuel consumption by up to 15% compared with conventional DTH rigs. Leopard DI650i’s fuel efficiency is further boosted by the flow-controlled drilling control system that eliminates fluctuations in airflow, instead allowing the pressure level to fluctuate in response to more difficult ground conditions and increased back pressure (for example, due to groundwater or collapsing holes). This makes maximum flushing pressure and penetration rates available in the most challenging of rock conditions, while still retaining the low fuel consumption of the traditional pressure control approach in easy ground conditions.

Leopard DI650i joins Sandvik’s other i-series drill rigs in its compatibility with the newest scalable automation solutions. The latest onboard options include TIM3D drill navigation with wireless data transfer, My Sandvik fleet monitoring system and full-cycle drilling automatics, which merge functionalities such as uncoupling, feed auto-aligning and feed auto-positioning into a single efficient sequence. These capabilities can be further upgraded with more advanced modules such as single-rig or fleet remote control systems by Automine® Surface Drilling.

Technical data Leopard™ DI650i
Recommended hole diameter 4½ – 8 inch (115 – 203 mm)
Drill tube diameter 3½, 4, 4½, 5 and 5½ inch* (89, 102, 114, 127 and 140 mm)*
DTH-hammer 4, 5 and 6 inch (optimum size)
Rotary head HTRH6, MRH6 (heavy duty option)
Engine CAT C15, 540 hp (403 kW) / 1,800 rpm, Tier 3 / Tier 4F / Stage V
Flushing air capacity

1,000 cfm at 348 psi (28.3m³ per min. at 24 bar) working pressure up to 435 psi (30 bar)

Transport length 40.7 ft (12.4 m)
Transport width 9.8 ft (3.0 m)
Transport height 11.5 ft (3.5 m)
Weight 55,336 lbs (25,100 kg) dry weight without options

*available only with MRH6 rotary head
