Sandvik DT912D offers intelligent efficiency to underground mineral excavation
At CONEXPO/CONAGG Sandvik Mining and Rock Technology showcased the latest tunneling jumbo in its extensive offering, the Sandvik DT912D. Designed especially for limestone applications, this new high reach - single boom jumbo is completely self-contained. It is powered with a fuel efficient and environmentally friendly Tier 4 Final diesel engine and equipped with onboard compressor and water-tank for air-mist flushing. With the new Intelligent, state-of-the-art control system it will bring to customers high quality and increased productivity in both tunneling and underground mine production.

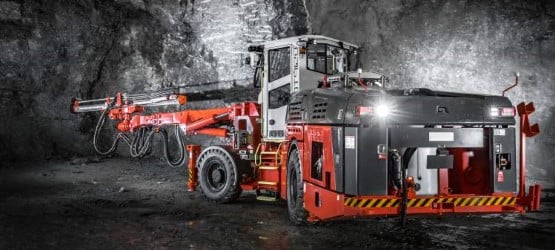

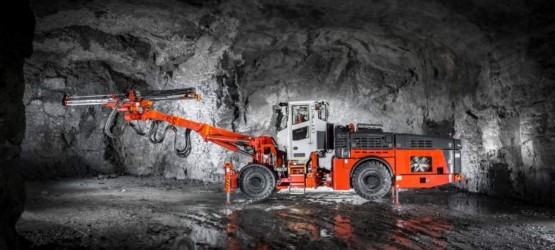

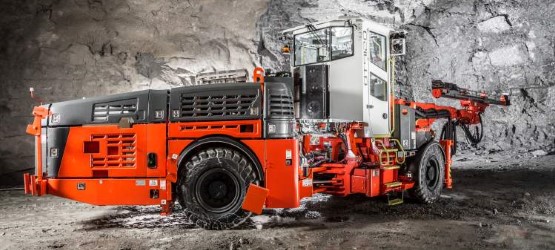

Sandvik DT912D – a self-contained, air-mist flushing, diesel-hydraulic high reach single boom jumbo – offers high quality drilling in its most advanced form. Designed for fast and accurate drifting and production drilling of 12 to 125 m² (130 to 1345 sq-ft) cross sections, the 24-ton jumbo combines the novel technology, creativity and expertise from Sandvik with the vast experience gained over the decades in the business. Being completely self-contained Sandvik DT912D is an optimal machine for multifaceted operations that will take excavation efficiency to another level.
Greater drilling power than ever before

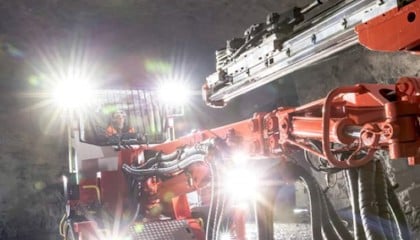

Sandvik DT912D has boosted performance written all over it. Featuring a 25 kW (33.5 Hp) high frequency RD525 rock drill for superior drilling performance with high lifetime, as well as the most powerful engine ever installed on a diesel-hydraulic jumbo, the Cummins Tier 4 Final with 205 kW (275 Hp), the machine can bring a true boost to productivity with low fuel consumption. As a standard, the jumbo has an electric controlled drilling system with added automatic functions, including one-hole automatics and is equipped with a SB150 universal boom for large, optimally shaped coverage and full automatic parallelism. In addition to face drilling, the versatile boom can also be used for crosscutting, bolt-hole drilling and extension drilling.
Completely self-contained for flexibility and speed of use
Efficient 4m³ (141 cfm) onboard compressor and an extra-large 1000 liter (265 gallon) water tank for air-mist flushing allow Sandvik DT912D to operate independently from the tunnel or mine infrastructure and guarantee longer drilling period from one set up. This enhances the efficiency of the total cycle time and gives extra flexibility of use. Sandvik DT912D offers rapid, safe and balanced tramming thanks to its powerful, 4-wheel-drive center articulated carrier. Also the ITA tunneling awards shortlisted, FOPS/ROPS complied cabin is ergonomically designed and well insulated to minimize noise and vibration; the noise level remaining under 73dB (A) at all times. As an option the cabin is also available with a cabin lifting system allowing even better visibility to tramming and drilling. This all makes the new jumbo an enjoyable workplace for the operator. Furthermore, the well-proven Sandvik Intelligent Control system Architecture (SICA) with comprehensive built-in diagnostics and user-friendly controls ensures ease of use and maintenance.
To ensure the best performance, Sandvik DT912D offers different instrumentation levels to choose from optimizing its performance in accordance with specific needs. These include the silver package for drilling angles and depth monitoring, while the gold package offers semi-automatic drilling according to drill plan. The platinum package, being the most comprehensive one, has the advantage of automatic boom movements and drilling cycle. The gold and platinum packages are integrated with the Sandvik iSURE® tunnel management tool for accurate drilling, charging and blasting plans. In addition, the iSURE® provides useful data collection and analysis reports for improving the work cycle and process and can also be complemented with the new geoSURE rock mass analysis and visualization system.
|Key specifications in brief:||DT912D|
|Coverage area||14,000 x 10,000 mm / 125m² (46 ft x 33 ft / 1,345 sq-ft)|
|Hydraulic rock drill||1 x Sandvik RD525 (optional RD520)|
|Drill feed||1 x Sandvik TF5i-16 feet|
|Boom||1 x Sandvik SB150 (optional SB90)|
|Drilling control system||Sandvik SICA|
|Automation levels||Drilling and boom controls: one hole automatics (Silver, Gold and Platinum packages as options)|
|Hole length||up to 6 180 mm (up to 20 ft - 4 in.)|
|Turning width||(T-section) 4 500 mm (14 ft – 9 in.)|
|Tramming / drilling width||2 500 mm / 3 000 mm (8.2 ft / 9.8 ft)|
|Tramming / drilling height||3 590 mm* / 3 590 mm (11.8 ft / 11.8 ft)|
|Tramming length||14 900 mm (48.9 ft)|
|Total weight||24 000 kg (depending on options) (52,911 lbs or 26.45 tons)|
* Minimum 3 190 mm (10.5 ft) with cabin lifting system.
Las Vegas, US, 7 March 2017
